Model	Btu's	Measurements          W       D           H	Cooking Surface             W          D
GGM-18H	37,500	18 x 26-3/4 x 15-1/2	17-3/4 x 19-1/2
GGM-24H	50,000	24 x 26-3/4 x 15-1/2	23-3/4 x 19-1/2
GGM-36H	75,000	36 X 26-3/4 X 15-1/2	35-3/4 x 19-1/2
GGM-48H	100,000	48 x 26-3/4 x 15-1/2	47-3/4 x 19-1/2
3-Year Limited Warranty and 1-Year on Site Labor Warranty

APW Website

Thermostatically Controlled Griddle



Large Bottom Mount Grease Collection Pan
w/4" Grease Trough
Stainless Steel Front Panel and Top Skirt
3/4" Polished Steel Griddle Surface
Griddle Plate is Fully Welded to Base
3" Stainless Steel Backsplash and Sloped Side Splashers
4" Heavy-Duty Heat Resistant Adjustable Legs
Snap Action Thermostat Turns a full 210 degrees for
Ultimate Control
No Electric Cord Required
Ideal for Cooking a Variety of Products in different Temperature Zones

Field Convertable from Nat Gas to LP Gas

Model	Btu's	Measurements            W       D           H	Cooking Surface            W            D
GGT-18H	37,500	18 x 26-3/4 x 15-1/2	17-3/4 x 19-1/2
GGT-24H	50,000	24 x 26-3/4 x 15-1/2	23-3/4 x 19-1/2
GGT-36H	75,000	36 X 26-3/4 X 15-1/2	35-3/4 x 19-1/2
GGT-48H	100,000	48 x 26-3/4 x 15-1/2	47-3/4 x 19-1/2
3-Year Limited Warranty and 1-Year on Site Labor Warranty

APW Website



CharRock Broiler


Large Bottom Mount Grease Collection Pan
w/4" Grease Trough
CharRocks Build "Visual Excitement" with More Flames and Smoke
One of the Highest btu Ratings in its Class
Reduces the Amount of Labor Time to Cook a 1/4# Hamburger by 20%
Fast Start Up and Recovery to Prime Cooking Temperatures
Versatile Grate System can be Adjusted in Height to give Maximum Control
3/4" Cast Iron 'Steak Char" Grate
Cast Iron Rock Holder Under Grates, with a Supply of Lava Rocks
Adds Back Flavor with Sizzle of Drippings from Meats
Snap Action Infinitely Adjustable Gas Valves Turn 180deg,
Giving Ultimate Control
Double Walled Firebox Protects Control Panel from Higher Temperatures
3" Stainless Steel Backsplash and Sloped Side Splash
4" Heavy-Duty Heat Resistant Adjustable Legs

Field Convertible from Nat Gas to LP Gas

Model	Btu's	Measurements           W       D              H	Cooking Surface                 W         D
GCRB-18H	60,000	18 x 25-57/64 x 15-1/2	17-3/4 x 18
GCRB-24H	80,000	24 x 25-57/64 x 15-1/2	23-3/4 x 18
GCRB-36H	120,000	36 x 25-57/64 x 15-1/2	35-3/4 x 18
GCRB-48H	160,000	48 x 25-57/64 x 15-1/2	47-3/4 x 18
3-Year Limited Warranty and 1-Year on Site Labor Warranty

APW Website

Radiant Broiler


Large Bottom Mount Grease Collection Pan
w/4" Grease Trough
Provides a More "Even Heat" Pattern Across Grill Surface
Easier to Maintain and Clean
Less "Flare-Ups' in the Broiling Process
One of the Highest btu Ratings in its Class
Reduces the Amount of Labor Time to Cook a 1/4# Hamburger by 20%
Fast Start Up and Recovery to Prime Cooking Temperatures
Versatile Grate System can be Adjusted in Height to give Maximum Control
3/4" Cast Iron 'Steak Char" Grate
Heavy-Duty Stainless Radiants
Snap Action Infinitely Adjustable Gas Valves Turn 180deg,
Giving Ultimate Control
Double Walled Firebox Protects Control Panel from Higher Temperatures
3" Stainless Steel Backsplash and Sloped Side Splash
4" Heavy-Duty Heat Resistant Adjustable Legs

Field Convertable from Nat Gas to LP Gas

Model	Btu's	Measurements           W       D              H	Cooking Surface                  W        D
GCB-18H	60,000	18 x 25-57/64 x 15-1/2	17-3/4 x 18
GCB-24H	80,000	24 x 25-57/64 x 15-1/2	23-3/4 x 18
GCB-36H	120,000	36 x 25-57/64 x 15-1/2	35-3/4 x 18
GCB-48H	160,000	48 x 25-57/64 x 15-1/2	47-3/4 x 18
3-Year Limited Warranty and 1-Year on Site Labor Warranty

APW Website


Electric Griddle



Large Bottom Mounted Grease Collection Pan
w/4" Grease Trough
Unique Heating System, Incorporating Special Heating
Elements that Transfer Heat Energy to Griddle Surface more Efficiently than Traditional Models
Fast Start-Up to Cooking Temperatures (reaches 350deg in 11minutes)
Provides Fast Recovery with Heat Levels Reaching 450deg
12" Cooking Sections for Zone Control
Thick Stainless Steel Construction on Front Panel and Top Skirt
3/4" Polished Steel Griddle Surface
4" Heavy-Duty Heat Resistant Adjustable Legs
3" Stainless Steel Backsplash and Sloped Stainless Steel Side Splash

Panini Grill

Large Italian Style Grill
Ribbed Cast-Iron Grates for Even Heat Distribution & Quick Cooking Time
Removable Drip Tray
Hinged Auto-Balancing Top Plate to Suite Foods up to 3" Thick
570deg Thermostat
Power and Ready Indicator Lights
Heat Resistand Handles

Model	Measurements           W           D         H	Surface          W        D	Voltage
WPG250	16 x 17-1/2 x9-1/22	14-1/2 x 11 Ribbed	120v 15a
1-Year Limited Warranty

http://www.waringcommercialproducts.com/catalog.php?pcID=89&products_id=235

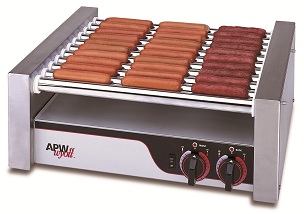

Roll-a-Grill

Flat Surface or Slanted Surface
Stainless Steel Exterior and Aluminum Drip Pan
Choice of Chrome or Non-Stick Rollers

Model	Measurements           W           D         H	Surface	Voltage
HR-20	17-1/4 x 18-5/8 x 8-1/2	Flat	120v 6.4a
HR-31	23-3/4 x 18-5/8 x 8-1/2	Flat	120v 8.3a
HR-50	34-3/4 x 18-5/8 x 8-1/2	Flat	120v 11a
HRS-20	17-1/4 x 18-5/8 x 8-1/2	Slanted	120v 6.4a
HRS-31	23-3/4 x 18-5/8 x 8-1/2	Slanted	120v 8.3a
HRS-50	34-3/4 x 18-5/8 x 8-1/2	Slanted	120v 11a
Complete w/6' Cord Attached
1-Year Limited and 1-Year on Site Labor Warranty
APW Website Roller Grills

Don't Forget Your Gas Hose for Easy Installation

Stationary Hose is a Stainless Steel Flex Hose with the Antimicrobial Coating

3/4" x 48"
3/4" x 60"
3/4" x 72"

Other Sizes are Available

Make Your Gas Equipment Mobile for Easy Cleaning and Installation

Casters and Mobile Gas Hose
Mobile Hose is a Stainless Steel Flex Hose Covered with a Stainless Steel Braided Hose and Antimicroabial Coating.
Complete w/Shut-Off Valve, 2-Streel "L", Quick Disconnect and Restraining Device.

3/4" x 48"
3/4" x 72"

Other Sizes are Available
